Clean Fresh Air (Air Conditioning) Filter

1. Loosen knobs to open access door.

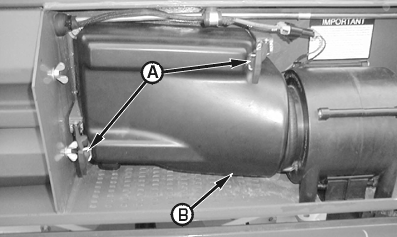

2. Unhook latches (A) and remove air filter cover (B).

3. Remove air filter (C).

Replace air filter if damaged. Go to step 5.

causym CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

4. Clean filter in one of these ways:

  • Tap it on a flat surface with the dirty side down.
  • Use compressed air opposite to the normal air flow.
  • Wash it in warm, soapy water. Rinse it and let it dry before using the air conditioner.

5. Install filter, replace filter cover, hook latches, and close rear cover.

NOTE: In extremely dusty or dirty conditions, filter should be cleaned daily.

T129683B
T129682B


A-Latch (2 used)
B-Air Filter Cover
C-Air Filter

CED,OUO1079,84 -19-29MAR00-1/1
