Lubricate Boom and Arch Cylinder Pins and Arch-to-Frame Pivot-If Equipped

Lubricate until fresh grease escapes at joints.

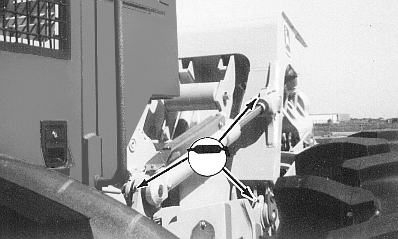

T129392B

Single Function-Arch-to-Frame Pivot and Arch Cylinder Pins

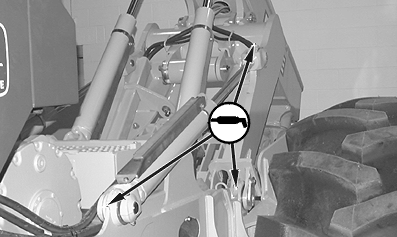

T129378B

Dual Function-Arch-to-Frame Pivot and Arch Cylinder Pins

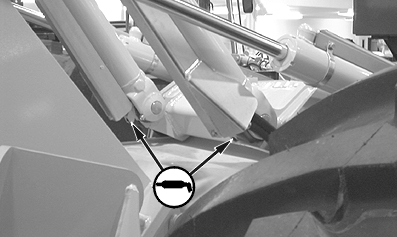

T129387B

Dual Function-Boom Lower Cylinder Pins

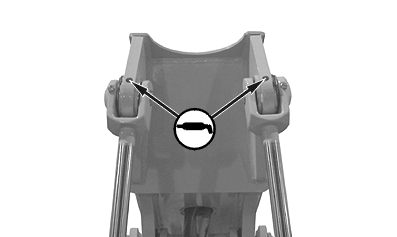

T129388B

Dual Function-Boom Upper Cylinder Pins

CED,OUO1079,89 -19-31MAR00-1/1
