Locking Machine Frames

causym CAUTION: Prevent possible injury from unexpected machine movement. Connect frame locking bar to both frames before working in frame pivot area.

1. Align machine frames.

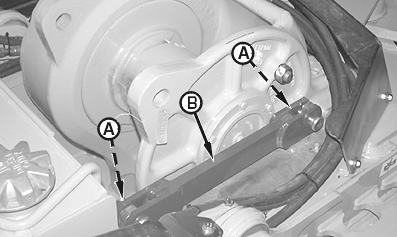

2. Remove spring pins and locking bar pins (A) to remove frame locking bar (B) from stored position.


A-Locking Bar Pins
B-Frame Locking Bar

T129367B

Machine With Winch

T7572AF

Machine Without Winch

CED,OUO1079,91 -19-31MAR00-1/2

3.

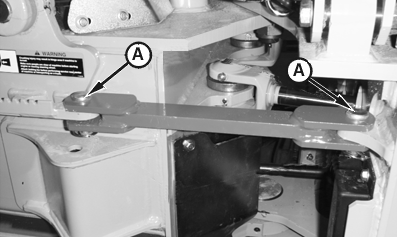

Install frame locking bar between frames with pins (A) and spring pins.


A-Pin (2 used)

T130044

CED,OUO1079,91 -19-31MAR00-2/2
