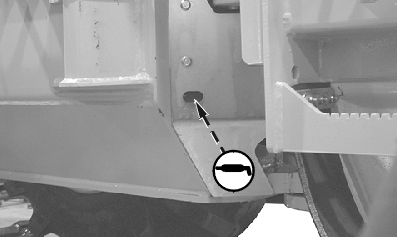

Lubricate Lower Drive Shaft Support Bearing

CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar before lubricating.

Clean all debris around greasing area.

Lubricate until fresh grease escapes around seal.

NOTE: If operating the machine in deep mud or snow, lubricate daily or every 10 hours.

If operating machine in water, lubricate twice daily or every five hours.
