Check Transmission Oil Level

IMPORTANT: Prevent possible machine damage. DO NOT operate engine without oil in the transmission system.

1. Machine must be on level surface with all equipment on ground and engine off.

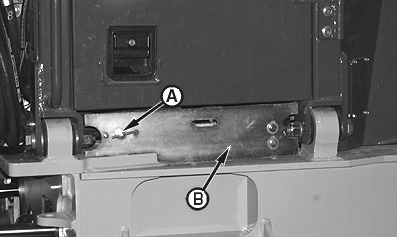

2. Turn handle (A) counterclockwise and open access panel (B).


A-Handle
B-Access Panel

T129546B

CED,OUO1079,97 -19-31MAR00-1/2

IMPORTANT: Check oil level when engine is cold. If machine has been running, shut engine OFF and wait at least 20 minutes for oil to drain down.

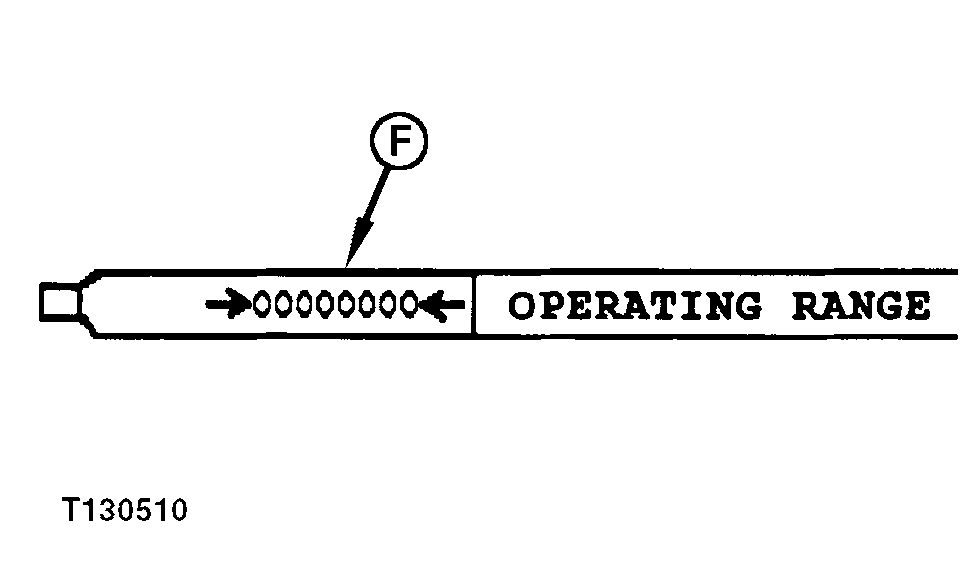

3. Remove dipstick (C), wipe it clean, and insert fully into dipstick tube. Remove dipstick and check oil level. Oil level should be within the operating range (F), shown on the dipstick.

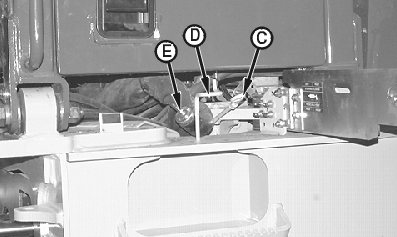

4. If necessary, pull filler hose out and place in hook (D). Add oil at filler cap (E). DO NOT OVERFILL-transmission may overheat. (See Fuels and Lubricants chapter.)


C-Dipstick
D-Hook
E-Filler Cap
F-Operating Range
