Fuel Level Gauge

Fuel level gauge is a nine segment analog gauge that is controlled by a signal received from the fuel level sender.

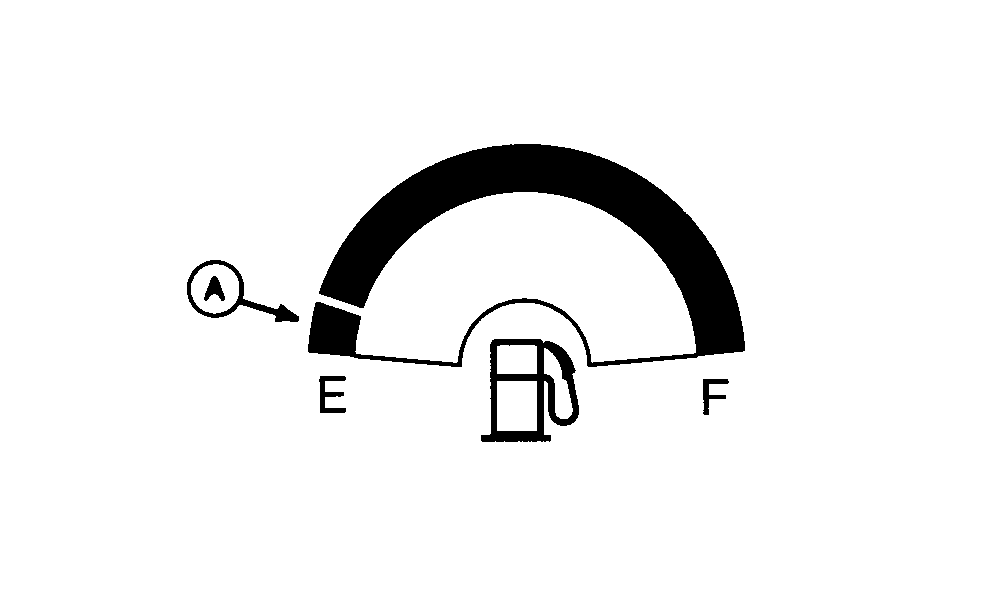

If fuel level is low, the lowest segment (A) of gauge will flash. Approximate fuel left is 38 L (10 gal).

A-Low Fuel Segment
