Engine Coolant Temperature Gauge

Engine coolant temperature gauge is a nine segment analog gauge that is controlled by a signal received from the engine coolant temperature sender. Normal range of gauge should show at least three to seven segments.

If temperature is too high, the ninth segment (A) will stay on and the other eight segments will flash. The STOP indicator light will flash and an audible alarm will sound. Immediately take load off the machine and run engine at high idle to allow engine to cool. If indicators continue to stay on after several minutes of operation, stop engine and check for problem.

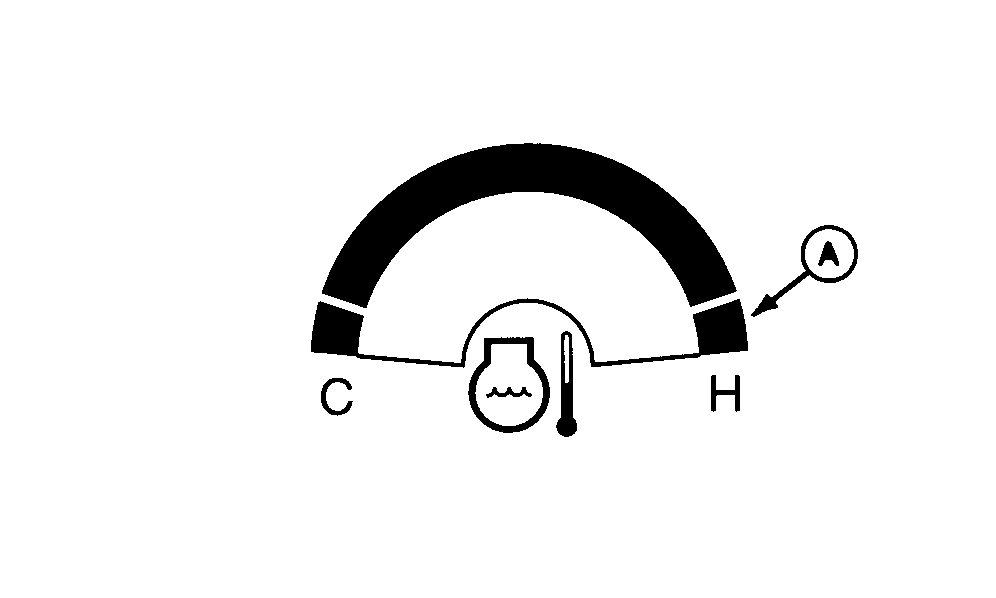

A-Engine Coolant Overheat Segment
