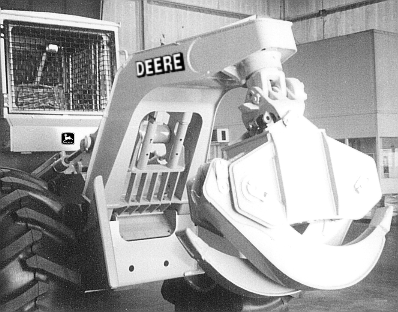

Transporting Grapple-If Equipped

Use grapple transport position for road travel or when grapple is not used.

1. Extend arch cylinder 3/4 of the way.

2. Close grapple tongs.

3. Rotate head at right angle to machine.

T112669

TX,30,JC1333 -19-19JUL96-1/1
