Fastening Cable to Winch Drum-6000 Series

causym CAUTION: Prevent possible personal injury from cutting wire. Wear gloves when handling cable to protect hands from cable wire cuts. DO NOT guide cable on winch with your hands.

1. Insert cable end through small hole (C) of nibble (A).

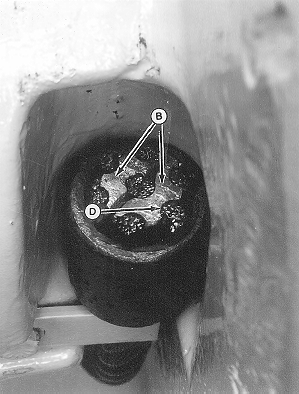

2. Separate cable end so wedges (B) are positioned tight against cable wires (D). Pull cable tight against nibble.


A-Nibble
B-Wedge (2 used)
C-Small Hole in Nibble
D-Cable Wires

T8390AO
T8390AM

TX,35,JC1334 -19-19JUL96-1/2

3. Lay cable in winch drum slot and install tab (A) tight against drum.


A-Tab

T8390AN

TX,35,JC1334 -19-19JUL96-2/2
