Fastening Cable to Winch Drum-4000 Series
Attach cable to winch drum using one of the following methods: |
CAUTION:
Prevent possible injury from cable wire. Wear gloves when handling cable to protect hands from cable wire cuts. DO NOT guide cable on winch with your hands.
TX,35,RR,1916 -19-27OCT93-1/4 |
|
Method 1

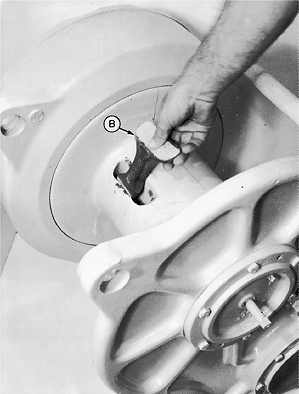

IMPORTANT: If a ferruled cable is used, the drum plug (B) must be installed to prevent cable from bending cable slot. 1. Attach a ferrule or cable clamp (A) to end of cable.2. Wrap cable around the drum. Slide the ferrule or cable clamp under the cable and into slot in drum, and secure with tab (C). 3. Adjust free spool drag to operator's preference. (See Winch Free Spool Drag Adjustment in this chapter.) NOTE: Factory free spool drag setting was done without cable; adjust free spool drag to operator's preference when cable is added. NOTE: Ten inch drum only has pocket method of locating ferrule cable to drum.
|
|
TX,35,RR,1916 -19-27OCT93-2/4 |
|
Method 2
IMPORTANT: If you unwind cable below one turn on drum, cable will come off drum. 1. Remove drum plug (B).
2. Thread cable up through small hole and insert cable back down through lower hole. Pull loop into drum. 3. Adjust free spool drag to operator's preference. (See Winch Free Spool Drag Adjustment in this chapter.) NOTE: Factory free spool drag setting was done without cable; adjust free spool drag to operator's preference when cable is added.
|
|
TX,35,RR,1916 -19-27OCT93-3/4 |
|
Method 3
1. Remove drum plug.
2. Thread cable up through small hole and wrap cable around wedge (A). Insert cable back down through lower hole and pull wedge into drum slot (B). 3. Adjust free spool drag to operator's preference. (See Winch Free Spool Drag Adjustment in this chapter.) NOTE: Factory free spool drag setting was done without cable; adjust free spool drag to operator's preference when cable is added.
|
|
TX,35,RR,1916 -19-27OCT93-4/4 |
