Clean Fuel Tank Filler Screen

1. Remove fuel tank filler cap.

2. Rotate screen until hole in outer flange lines up with snap ring opening.

TX,55,JC278 -19-26JAN95-1/2

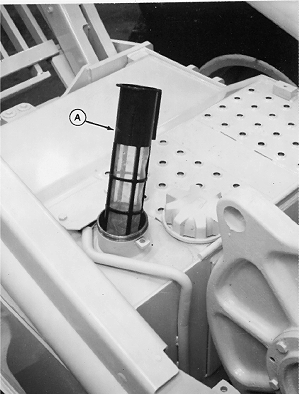

3. Remove filler screen (A).

4. Clean screen with diesel fuel. Replace screen if damaged.

5. Install screen.

6. Install filler cap.


A-Filler Screen

T7431AX

TX,55,JC278 -19-26JAN95-2/2
