Lubricate Frame Hinge Pivots

causym CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar before lubricating.

Lubricate four points until fresh grease escapes at joints.

Use proper grease. (See Fuels and Lubricants chapter.)

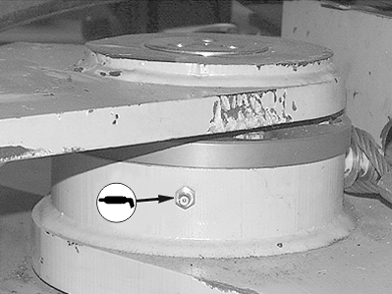

T130558B

Upper Frame Pivot Grease Fitting

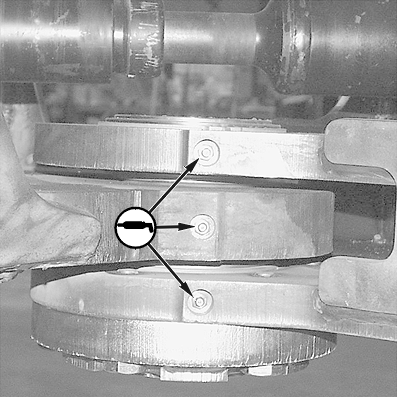

T130559B

Lower Frame Pivot Grease Fittings
