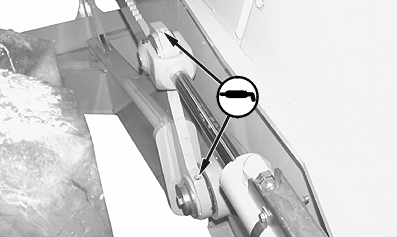

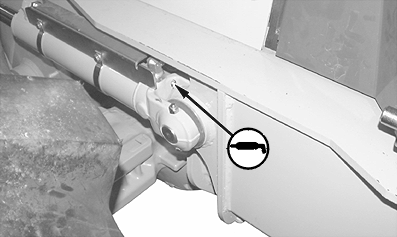

Lubricate Stacking Blade and Cylinder Pivots

Use a low pressure grease gun.

Lubricate six points until grease escapes around seals.

IMPORTANT: Keep the area under the blade cylinders free of debris. Debris can restrict movement of the cylinders as the blade is lowered, and could cause damage to the cylinder rods.

NOTE: If operating machine in deep mud or snow, lubricate daily or every 10 hours.

If operating machine in water, lubricate twice daily or every five hours.

TX,65,RR,846 -19-26JAN95-1/1
