Check Radiator Coolant Level

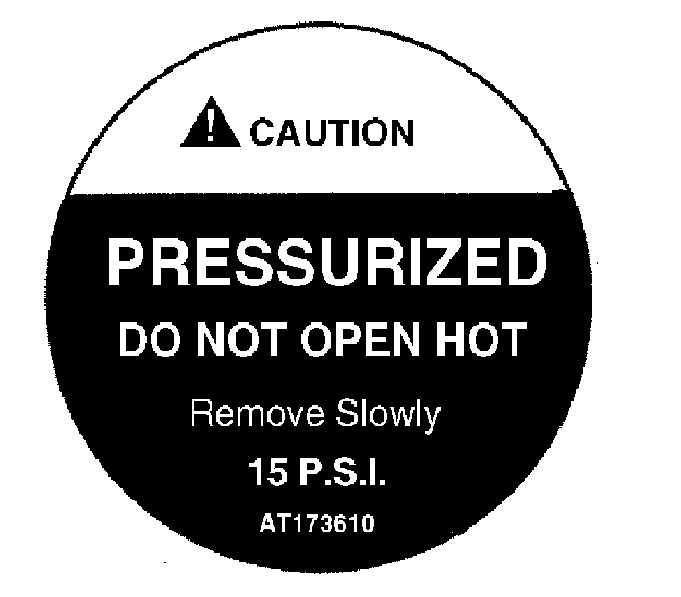

causym CAUTION: Prevent possible injury from hot spraying water. DO NOT remove radiator filler cap unless engine is cool. Turn cap slowly to the stop. Release air to relieve all pressure before you remove cap.

1. Slowly remove cap. Coolant level must be at bottom of the filler neck.

NOTE: If radiator coolant level is low, check for leaks on radiator cap, and hose connections between radiator and coolant recovery tank.

2. Add coolant, if necessary.

3. Install filler cap.

T6642EK
T101279

TX,75,JC1283 -19-15JUL96-1/1
