Replace Differential Lock Return Filter

causym CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar.

1. Install frame locking bar.

2. Remove upper engine frame guard (A).

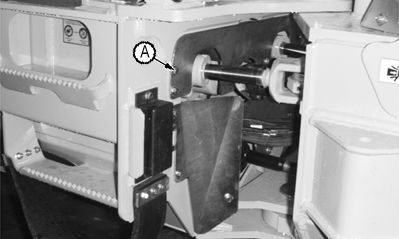

A-Upper Engine Frame Guard

T110360B

TX,80,JC2090 -19-02JUL97-1/2

3. Turn filter (B) counterclockwise to remove.

4. Fill new filter with oil. Install new filter.

5. Start engine.

6. Activate differential lock several times.

7. Check for leaks.

8. Install frame guard.

9. Remove frame locking bar.

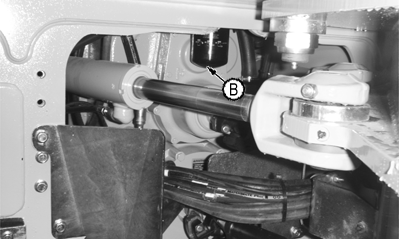

B-Filter

T110361B

TX,80,JC2090 -19-02JUL97-2/2
