External Service Brake Inspection

causym CAUTION: Prevent possible injury from hot spraying oil. Slowly loosen plug to relieve any air pressure.

Do first inspection at 5000 hours. Thereafter, inspect every 1000 hours.

If the service brakes are subjected to severe duty, inspect more frequently.

TX,90,JC390 -19-07FEB95-1/2

1. Lower engine frame bottom guard.

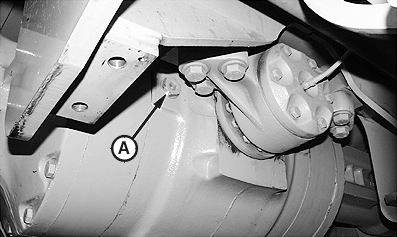

2. Remove check plug (A).

3. Inspect the brake linings (C) on brake disk.

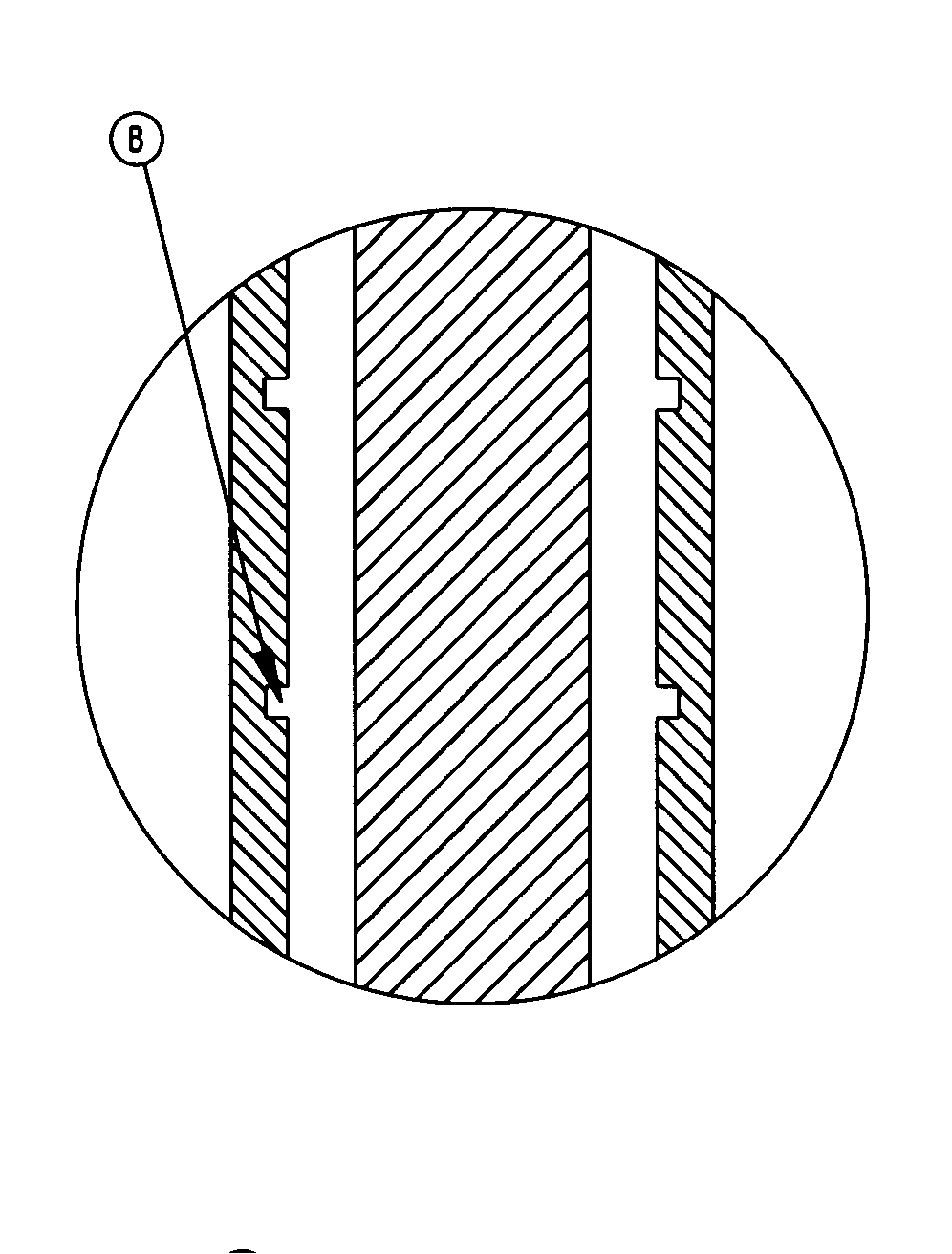

4. Remove axle housing and replace brake disk if oil grooves (B) on facing material are no longer visible.

5. If further inspection of brake elements or replacement of brake linings is necessary, see your authorized dealer.


A-Check Plug
B-Oil Grooves
C-Brake Linings

T130367C

Front Axle Shown

T8414AD
T8417AC

TX,90,JC390 -19-07FEB95-2/2
