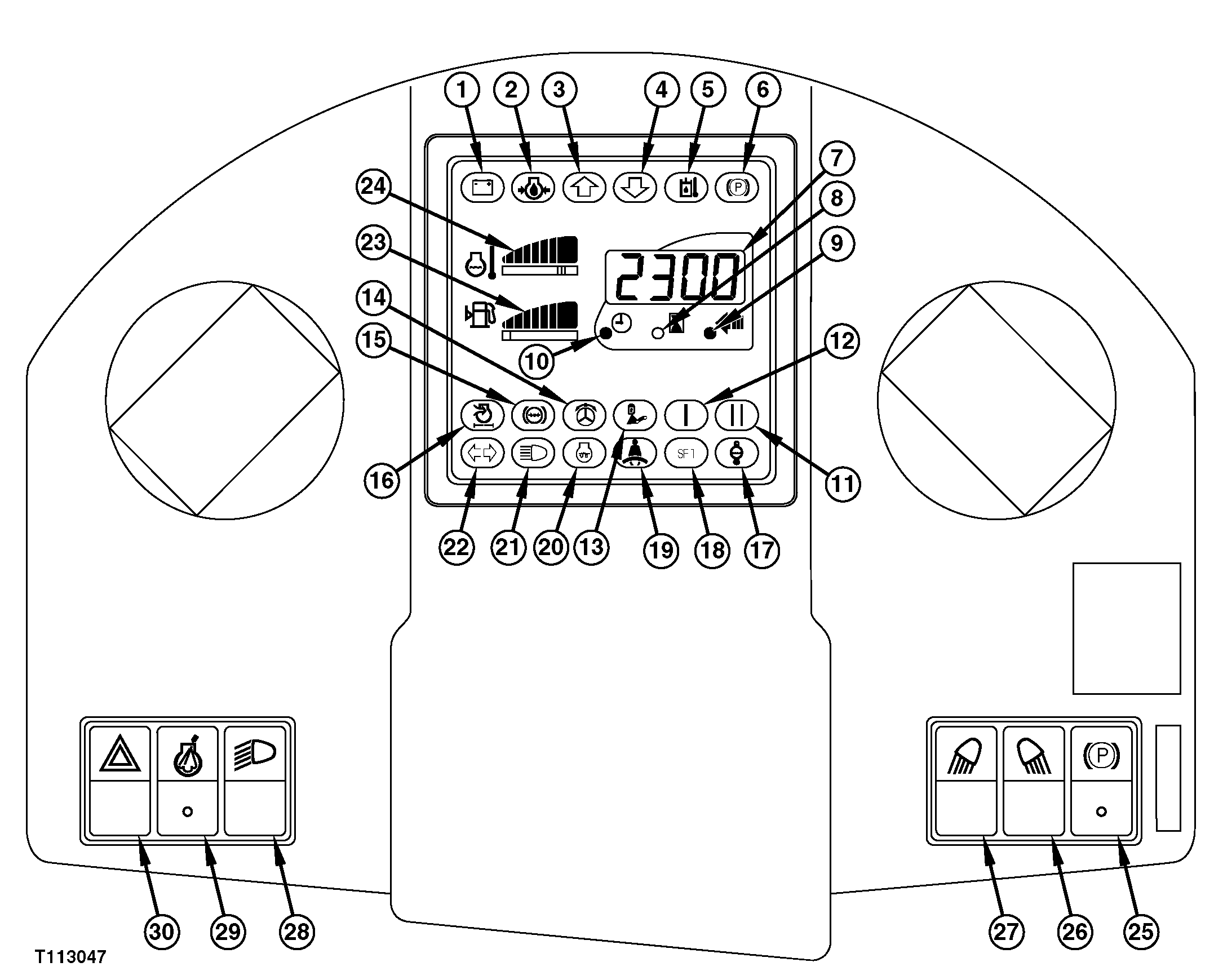

1-Battery Voltage Indicator
2-Low Engine Oil Pressure Indicator
3-Forward Direction Indicator
4-Reverse Direction Indicator
5-Hydraulic Oil Temperature Indicator
6-Park Brake Indicator
7-Clock, Hour Meter, and Speedometer (Hour Meter Reading Shown)
|
8-Hour Meter Indicator
9-Speedometer Indicator
10-Clock Indicator
11-High Speed Indicator
12-Low Speed Indicator
13-Pilot Disable Indicator
14-Secondary Steering Indicator-If Equipped
15-Not Used
16-Engine Air Filter Restriction Indicator
|
17-Engine Coolant Temperature Indicator
18-Not Used
19-Seat Belt Indicator
20-Not Used
21-High Beams ON Indicator
22-Turn Signal Indicator
23-Fuel Gauge
24-Engine Coolant Temperature Gauge
|
25-Park Brake Switch
26-Rear Work Lights Switch-If Equipped
27-Front Work Lights Switch-If Equipped
28-Drive Lights Switch
29-Start Aid Switch-If Equipped
30-Four-Way Flashers Switch
|
