Opening and Securing Side Door

To open side cab door from inside, lift up on lever (A).

To lock right side door (if equipped) push down on lever (A).

A-Latch Lever

CED,OUO1002,391 -19-19FEB98-1/3

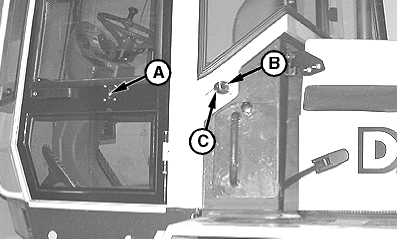

Open door until outside latch (A) fastens on U-bolt (B).

Door must be secure against bumper (C). Adjust U-bolt as necessary to maintain proper tension.

A-Outside Latch
B-U-Bolt
C-Door Bumper

CED,OUO1002,391 -19-19FEB98-2/3

To release secured open door from inside the cab or on the ground, pull up on lever (A).

Door will latch when closed.

A-Latch Lever

CED,OUO1002,391 -19-19FEB98-3/3
