Drive Lights

When in the middle position, light switch (A) turns on the following:

• Monitor panel back light for clock, hour meter, and speed display, engine coolant temperature gauge, and fuel gauge

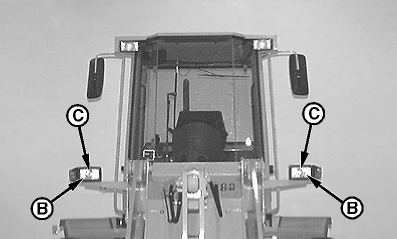

• Marker lights (B)

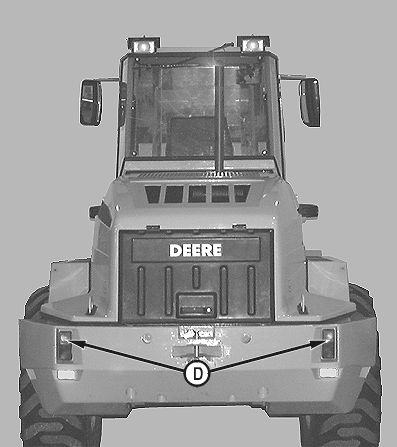

• Tail lights (D)

When in the up position, light switch (A) turns on the drive lights (C).

A-Drive Light Switch
B-Marker Lights
C-Drive Lights
D-Tail Lights

CED,OUO1002,392 -19-13OCT99-1/1
