Adjusting Seat

causym CAUTION: You can lose control of machine and be injured if seat is loose. Be sure seat is properly locked in position before operating the machine.

Turn weight adjustment knob (C) clockwise for firm ride and counterclockwise for soft ride.

Lift fore-aft lever (E) to move seat forward and rearward. Release handle at one of several positions.

Remove your weight from seat. Lift seat height adjustment lever (B) and move seat to desired height.

Move seat to mid-to-aft position.

While sitting in seat, lift backrest tilt adjustment levers (D) and allow cushion to angle forward or lean backward into desired position and release lever.

While sitting in seat, lift seat tilt adjustment lever (A) and tilt seat to desired angle and release lever.

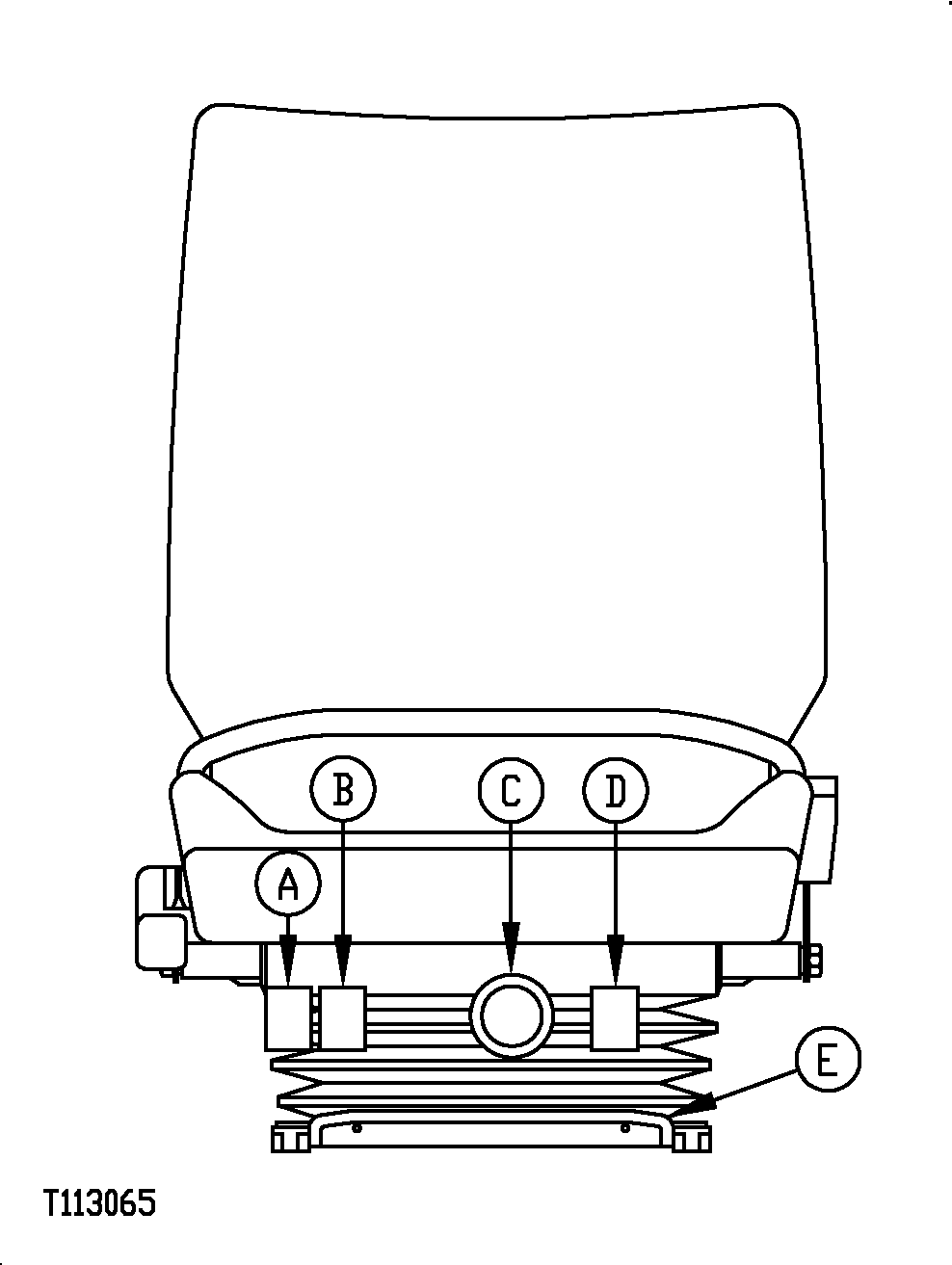

T113065


A-Seat Tilt Adjustment Lever
B-Seat Height Adjustment Lever
C-Weight Adjustment Knob
D-Backrest Tilt Adjustment Lever
E-Fore-Aft Adjustment Lever

CED,OUO1002,396 -19-19FEB98-1/1
