Stopping the Engine

IMPORTANT: Prevent possible engine damage. If engine stops when operating under load, remove load. Restart engine immediately. Run 30 seconds at 1/2 speed before adding load.

1. Park machine on level surface.

2. Lower equipment to ground.

CED,OUO1002,407 -19-19FEB98-1/2

3. Move FNR lever (A) to neutral (N). Engage neutral lock latch (B).

causym CAUTION: Prevent possible injury from unexpected machine movement. Never rely on FNR lever alone to keep machine from moving. Machine can unexpectedly roll or move under power, resulting in death or serious injury. Always turn engine off or push park brake switch to ON to hold machine.

4. Push park brake switch to ON.

IMPORTANT: Turbocharger (if equipped) may be damaged if engine is not properly shut down.

5. Run engine at 1/2 speed for 2 minutes before stopping, to avoid damage to turbocharger (if equipped). Release accelerator pedal to slow idle.

6. Turn key switch to STOP.

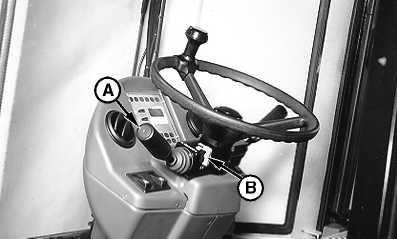

T113086


A-FNR Lever
B-Neutral Lock Latch

CED,OUO1002,407 -19-19FEB98-2/2
