Boom and Bucket Control Lever

Move control lever forward (A) to lower boom, or rearward (D) to raise boom.

NOTE: Pilot enable/boom down switch (H) must be in momentary position while moving control lever forward to lower the boom with engine stopped.

Move control lever left (F) to roll back bucket, or right (C) to dump bucket.

Float (lever in full forward detent position [B]): This position allows oil to flow in and out both ends of cylinders so the bucket can follow the contour of the ground. The lever will stay in the detent position only when the float enable switch (K) is ON. Manually release lever from this position.

Return-to-Dig (lever in full left detent position [G]): When the return-to-dig enable switch (J) is ON, the lever will stay in the detent position and automatically release to the neutral position when the bucket reaches a preset dig position. However, if the lever is manually held in the detent position, the bucket will continue to roll back.

Boom height kickout (lever in full rear detent position [E]): When the boom height kickout enable switch (I) is ON, the lever will stay in the detent position and automatically release to the neutral position when the boom reaches a preset height. However, if the lever is manually held in the detent position, the boom will continue beyond the preset height.

Boom and bucket functions can be operated simultaneously by moving lever between positions. For example, to raise boom and roll back bucket, move lever between positions (D) and (F).

A-Lower Boom
B-Float
C-Dump Bucket
D-Raise Boom
E-Boom Height Kickout
F-Rollback Bucket
G-Return-To-Dig

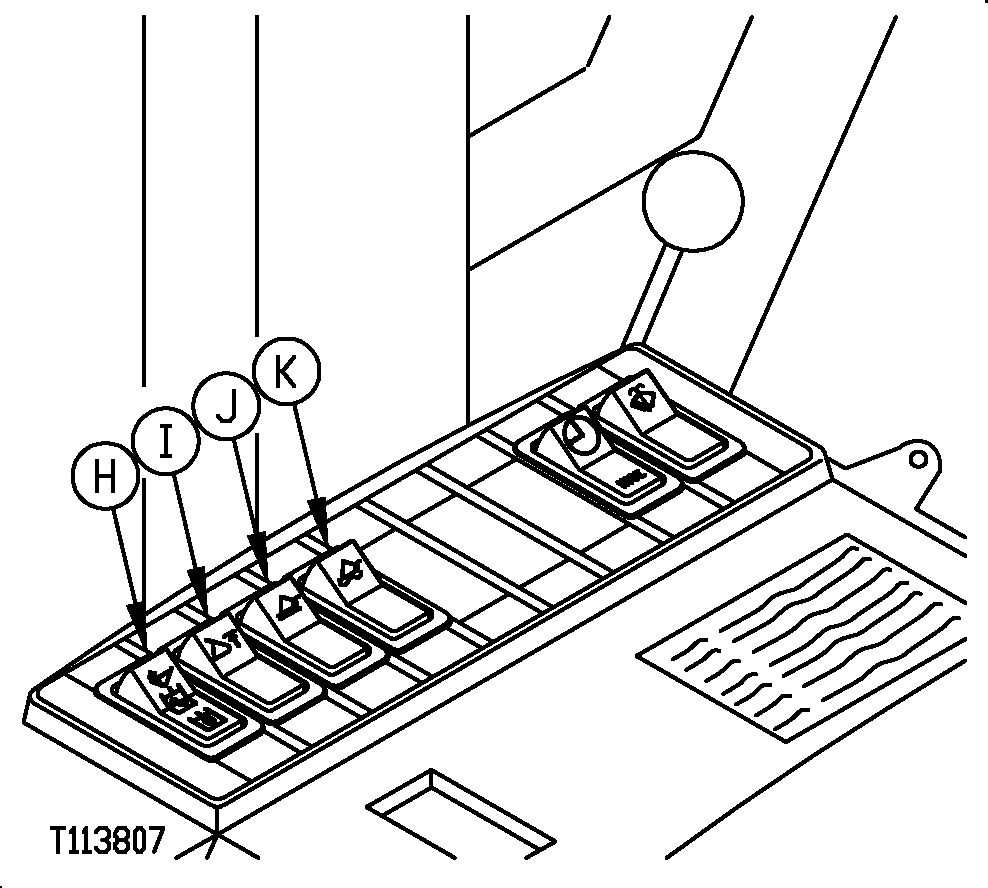

H-Pilot Enable/Boom Down Switch
I-Boom Height Kickout Enable Switch
J-Return-to-Dig Enable Switch
K-Float Enable Switch
