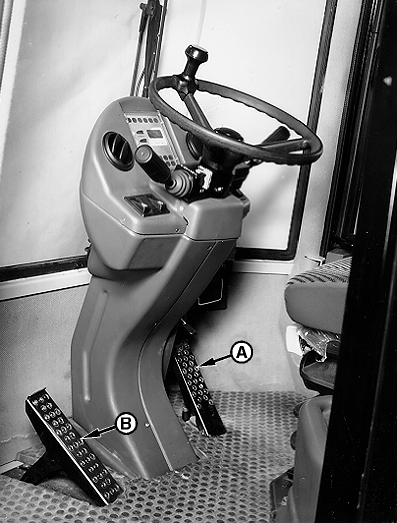

Brake/Inching PedalUse the brake/inching pedal (B) in situations such as truck loading where machine positioning and maximum hydraulics are needed. If the accelerator pedal (A) is held constant and the brake/inching pedal is pressed down, the machine travel speed will decrease and engine rpm will remain relatively constant. This allows more power for the working hydraulics. As the brake/inching pedal is pressed, the hydrostatic drive will decrease machine travel speed. When the brake/inching pedal is depressed approximately half way or more, the service brakes start to engage.
|
|
CED,OUO1002,416 -19-14OCT99-1/1 |
