Boom Height Kickout Adjustment

IMPORTANT: Switch adjustment should be set to prevent boom cylinder from hitting the stop at end of travel.

2. Move the boom to the desired boom height kickout position. Stop engine.

3. Put boom height kickout switch (A) on operator's side panel to ON.

4. Loosen hex nuts (C). Move switch (B) towards cab until light (D) turns on. Move it back until light turns off.

5. Ensure the boom is as far to the left on its pivot pins as possible.

6. Inspect air gap between switch (B) and loader frame, it must be 5-8 mm (0.197- 0.315 in.)

7. If air gap is out of specifications, loosen hex nuts and adjust switch (B) to get correct air gap. Light (D) should turn on.

8. Check boom height kickout for correct adjustment. Adjust as required.

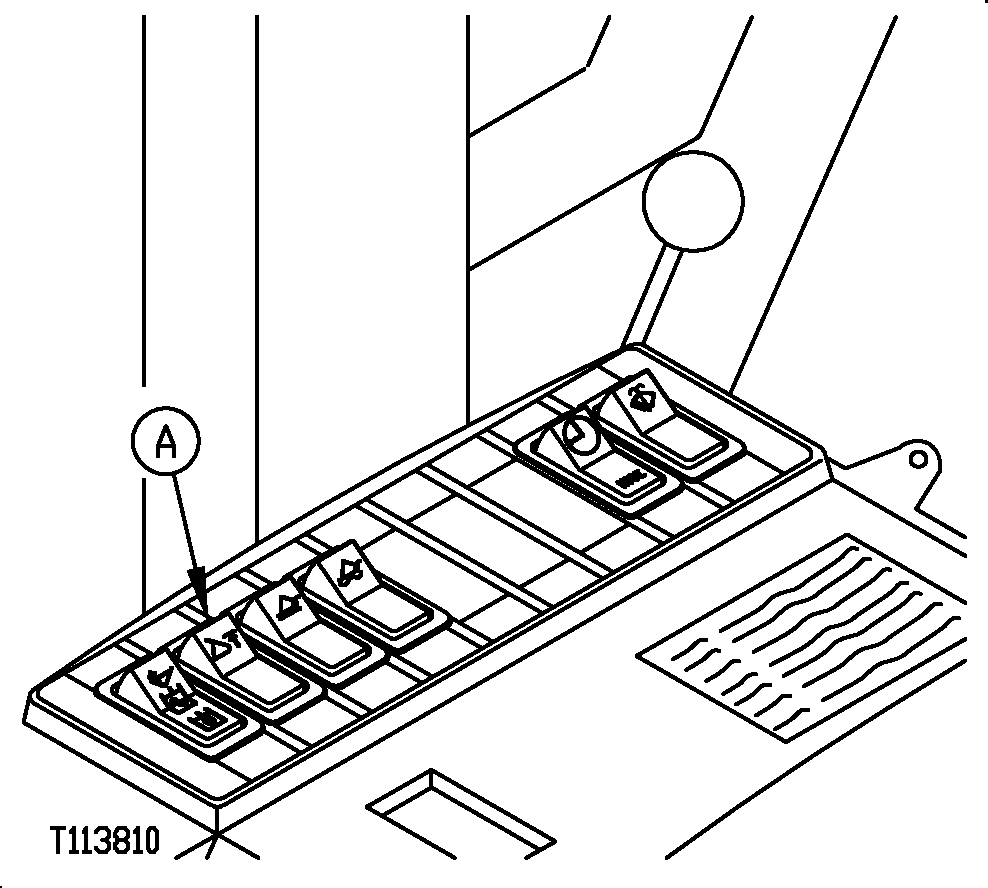

A-Boom Height Kickout Enable Switch

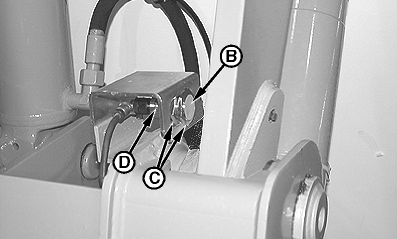

B-Switch
C-Hex Nuts (2 Used)
D-Light
