Return-to-Dig Adjustment

2. Move the boom and bucket to the desired return-to-dig position.

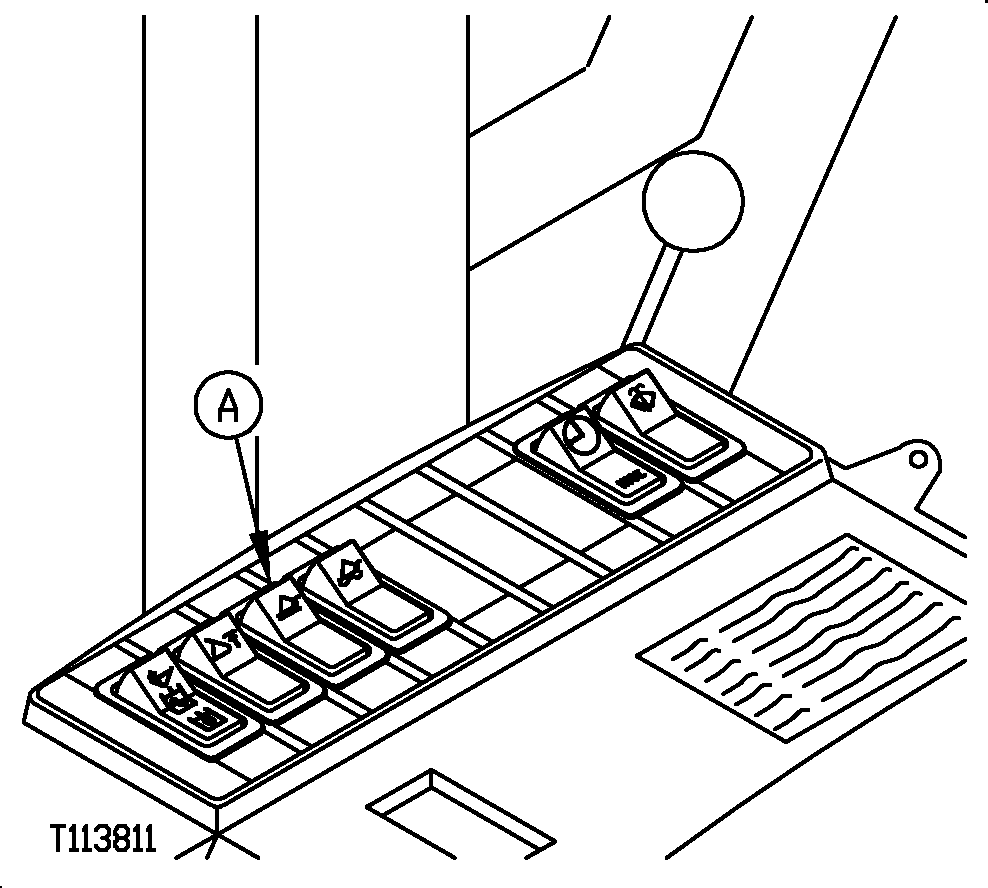

3. Put return-to-dig enable switch (A) on operator's side panel to ON.

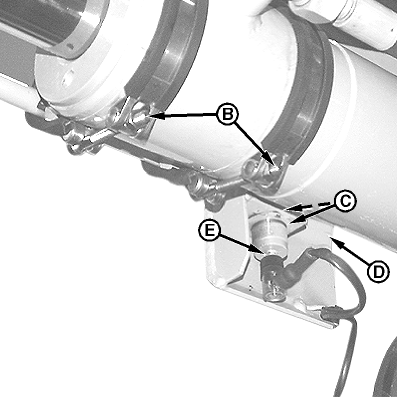

4. Loosen clamps (B). Slide switch bracket (D) up bucket cylinder until light (E) turns on. Slide bracket back until light turns off. Tighten clamps.

5. Loosen hex nuts (C). Adjust air gap between switch and rod to 5-8 mm (0.197-0.315 in.). Tighten hex nuts.

6. Raise boom. Cycle bucket from full dump to rollback. Readjust as required to get desired position.

A-Return-to-Dig Enable Switch
B-Clamp (2 Used)
C-Hex Nut (2 Used)
D-Switch Bracket
E-Light
