CAUTION:
Prevent possible injury from unexpected machine movement. Clear all bystanders from lifting area. Select correct lifting cable strength for weight of machine. Test lift by raising machine 0.33 m (1 ft) off the ground.
Specification
324H Loader
-Weight
7040 kg (15,520 lb) Approximate
344H Loader
-Weight
7590 kg (16,730 lb) Approximate
1.

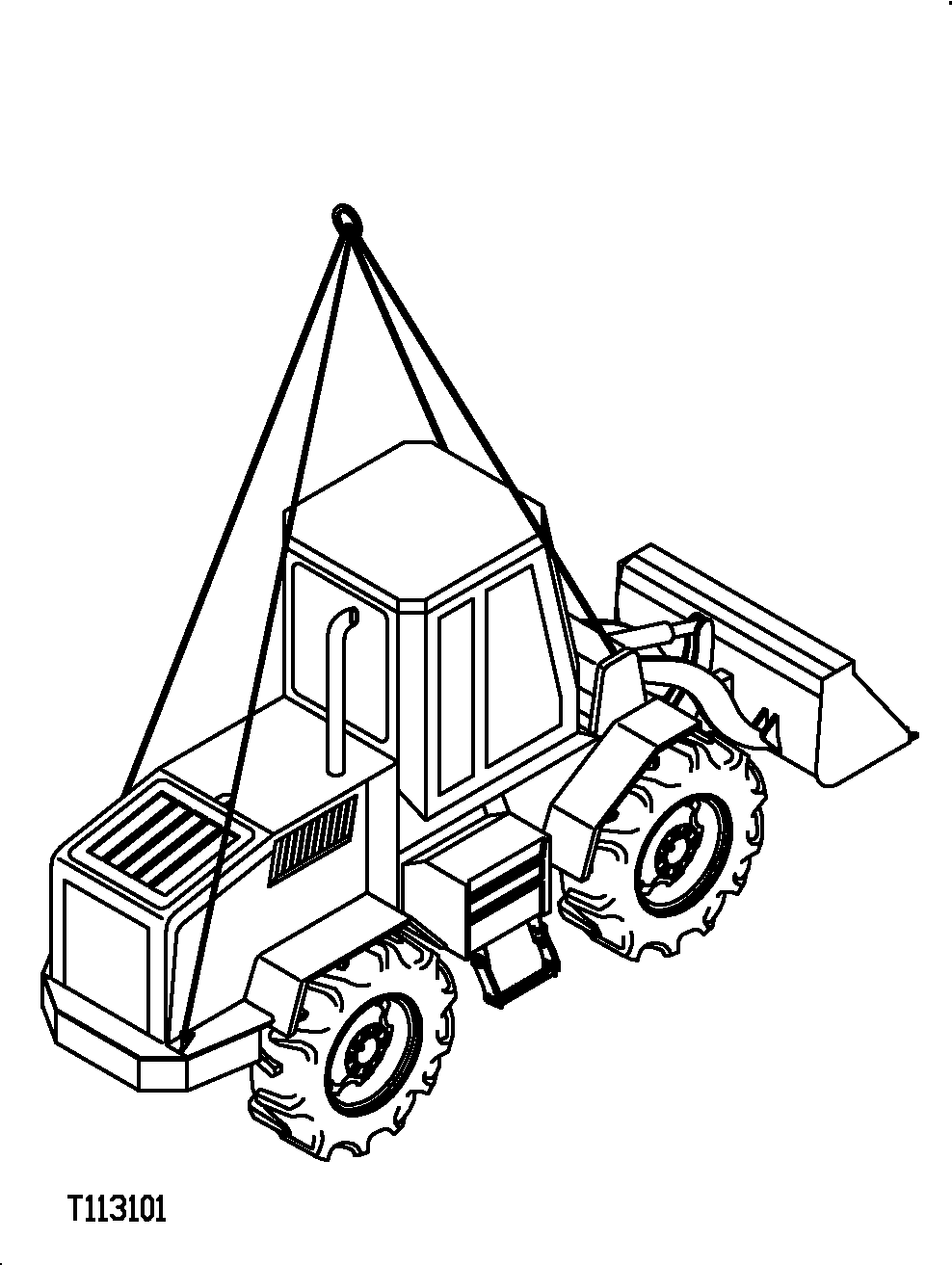

Attach cables to existing lifting eyelets on machine so cables do not rub machine.
2.
Attach a tether cable to machine to control machine as it is lifted.
3.
Test lift by raising machine 0.3 m (1 ft) off the ground.
CAUTION:
Prevent possible injury from unexpected machine movement. Clear all bystanders from lifting area. Select correct lifting cable strength for weight of machine. Test lift by raising machine 0.33 m (1 ft) off the ground.
