Check the Hour Meter Regularly

Press down and release the mode switch (A) until the hour meter indicator (C) turns on. The display (B) shows the total hours of machine operation.

Intervals on the periodic maintenance chart are for operating in normal conditions. If you operate your machine in severe conditions, you should service it at shorter intervals.

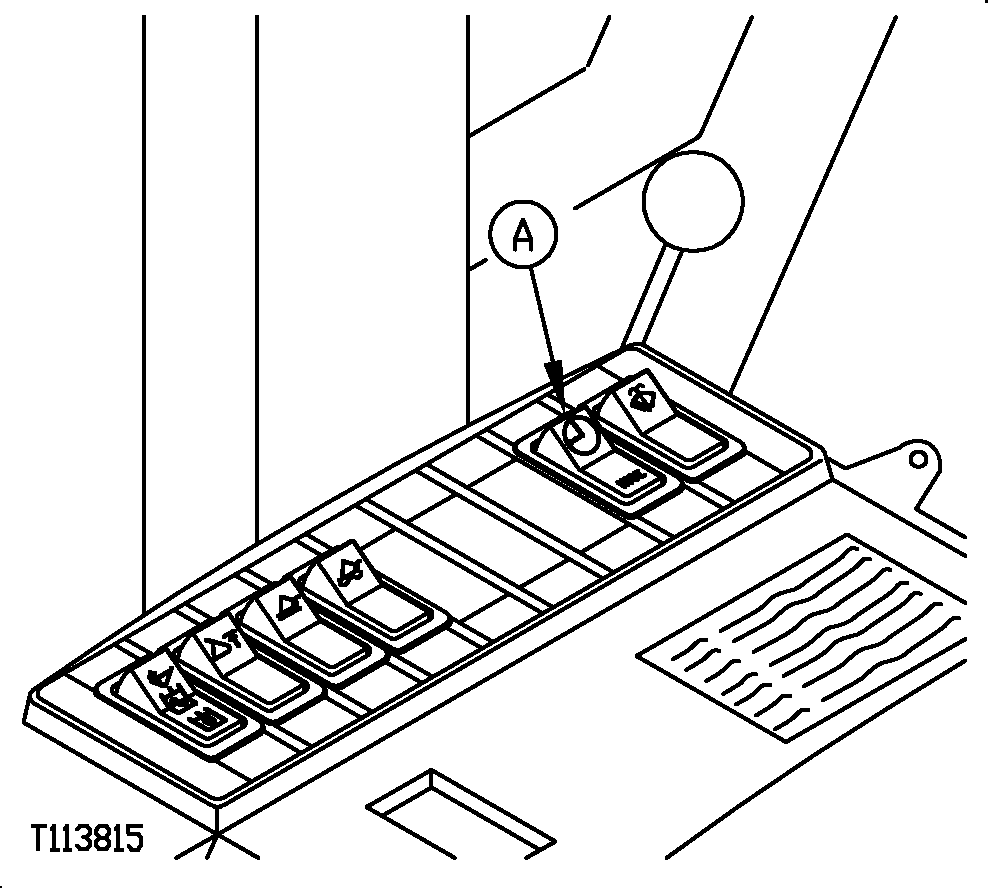

A-Mode Switch

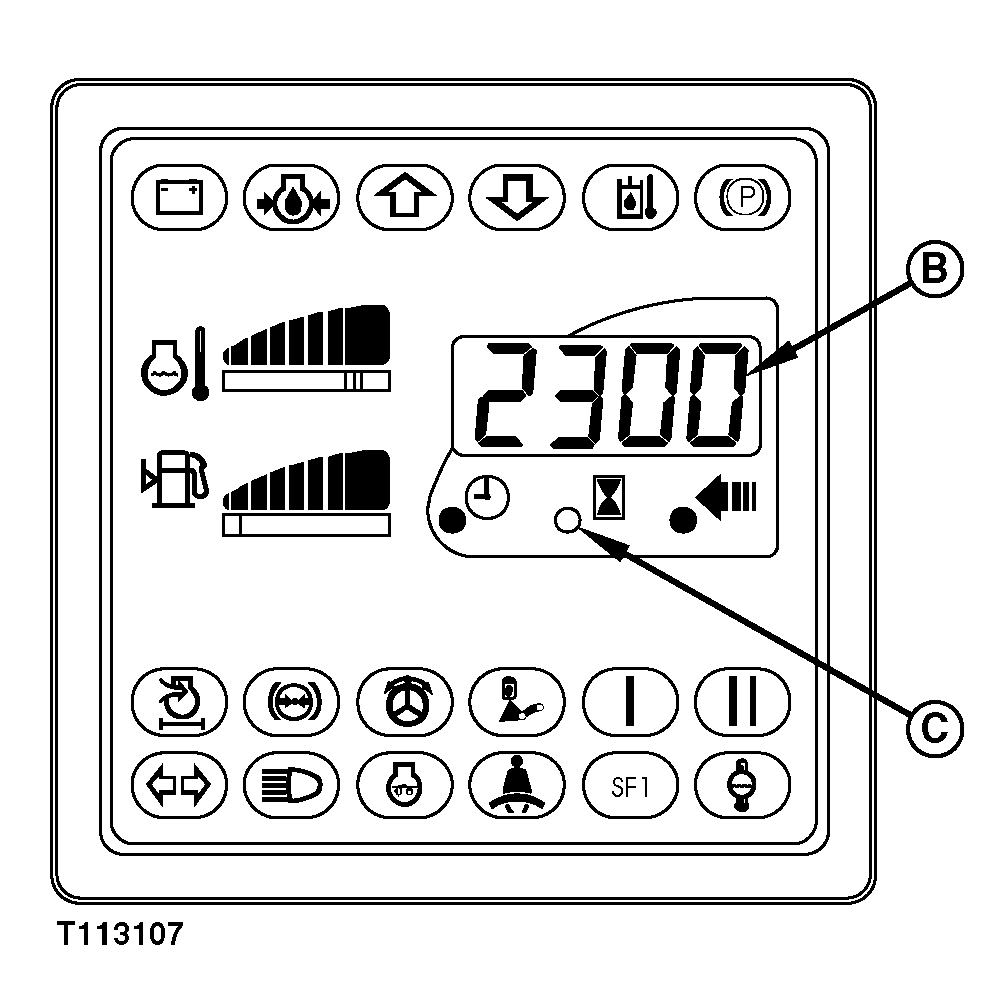

B-Display (Hour Meter Shown)
C-Hour Meter Indicator

CED,OUO1002,426 -19-20FEB98-1/1
