Locking Machine Frame

causym CAUTION: Prevent possible injury from unexpected machine movement. Connect frame locking bar to both frames before you work in frame pivot area.

1. Align machine frames.

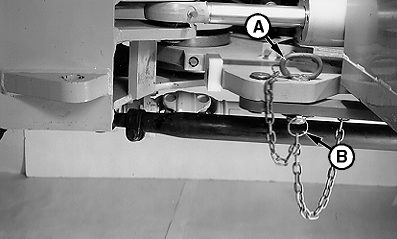

2. Remove quick lock ring (B) and pull locking pin (A) from hole.


A-Locking Pin
B-Quick Lock Ring

T113109

CED,OUO1002,428 -19-28JAN97-1/2

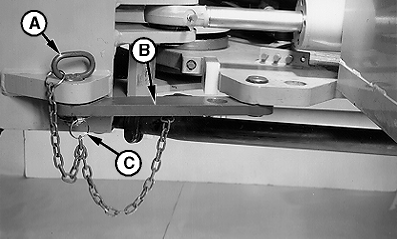

3. Rotate locking bar (B) to align with hole in machine frame.

4. Install locking pin (A) through hole in loader frame and end of locking bar. Install quick lock ring (C) to secure locking bar in place.


A-Locking Pin
B-Locking Bar
C-Quick Lock Ring

T113110

CED,OUO1002,428 -19-28JAN97-2/2
