Boom Lock

causym CAUTION: Always install boom lock before working on or around this machine with the boom raised.

Empty bucket and place in dump position before installing boom lock.

1. Raise boom. Empty bucket and place in dump position before installing boom lock.

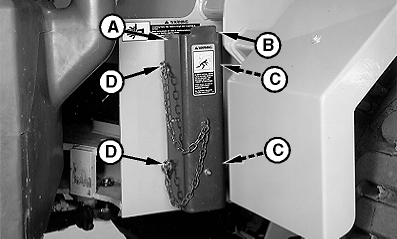

2. Remove boom lock (A) from side of machine by removing retaining clips (C) and pins (D).

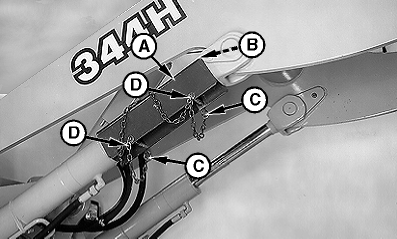

3. Install boom lock on boom cylinder with tab (B) pointing up.

4. Secure boom lock with pins and retainer clips. Lower boom onto boom lock.

5. Store boom lock on side of machine with tab pointing up.

T113112
T113113


A-Boom Lock
B-Tab
C-Retainer Clip (2 Used)
D-Pin (2 Used)
