Opening Engine Access Door

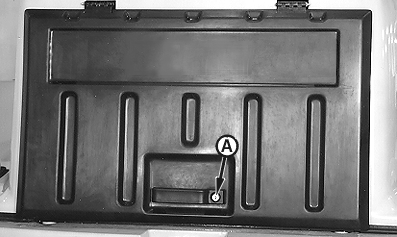

On machines (S.N. -710261), unlatch access door by inserting ignition key in lock (A) and turn clockwise.

To latch access door, close door, insert key in lock (A) and turn counterclockwise.

On machines (S.N. 710262- ), unlock door with ignition key. Push button to release latch.

CED,OUO1002,431 -19-14OCT99-1/1
