Check Windshield Washer Fluid Level

1. Remove knob (A) on reservoir compartment door. Pull door down to access reservoir.

2. Check fluid in windshield washer reservoir (B).

3. During winter season, use all-season windshield washer fluid which will not freeze.


A-Knob
B-Windshield Washer Reservoir

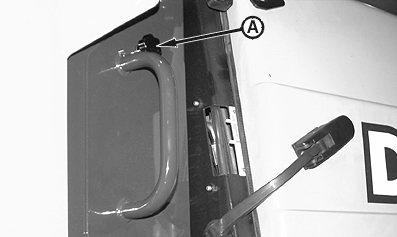

T125795B

324H (S.N. 710262- ) Shown

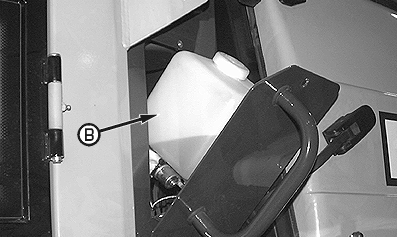

T125796B

324H (S.N. 710262- ) Shown

CED,OUO1002,432 -19-10NOV99-1/1
