OMT183945: 324H and 344H Loader, Block File: CED_OUO1002_438_19

1. Open engine cover.

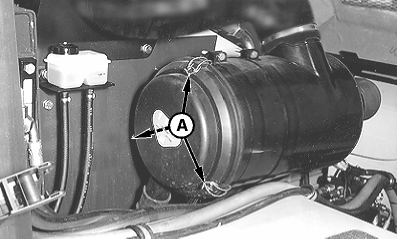

2. Remove air cleaner cover by releasing clips (A).

A-Air Element Cover Clips

CED,OUO1002,438 -19-09NOV99-1/3

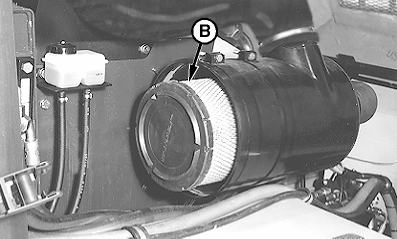

3. Remove primary element (B).

B-Primary Element

CED,OUO1002,438 -19-09NOV99-2/3

NOTE: Remove secondary element only if it is being replaced.

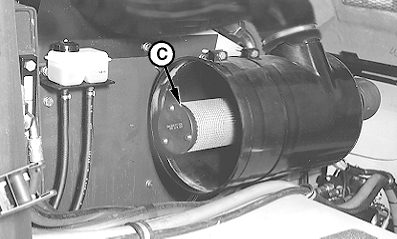

4. Remove secondary element (C).

5. Install new secondary element.

6. Install new primary element.

7. Replace cover and attach clips.

C-Secondary Element

CED,OUO1002,438 -19-09NOV99-3/3
