Inspect Serpentine Belt

1. Check belt (A) regularly for wear, especially for cracks at the bottom of grooves and for frayed edges.

IMPORTANT: If belt is stretched to the point that the belt tensioner is against its stop, belt must be replaced.

2. If necessary, replace belt.

3. If air conditioning is installed, remove guards (B and C).


A-Serpentine Belt
B-Guard
C-Guard

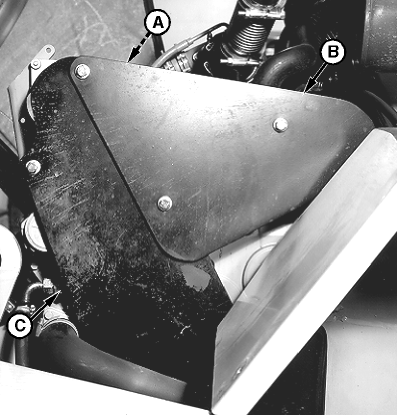

T113129

With Air Conditioning, Guard Installed

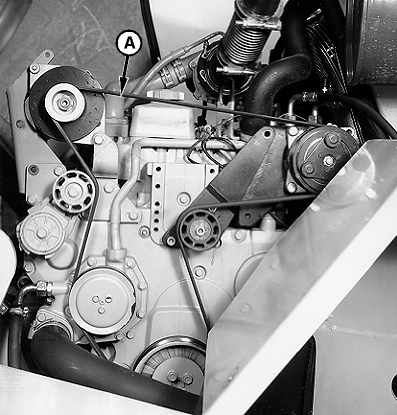

T113130

With Air Conditioning, Guard Removed

CED,OUO1002,439 -19-29SEP97-1/3

4. If air conditioning is not installed, remove guard (B).


A-Serpentine Belt
B-Guard

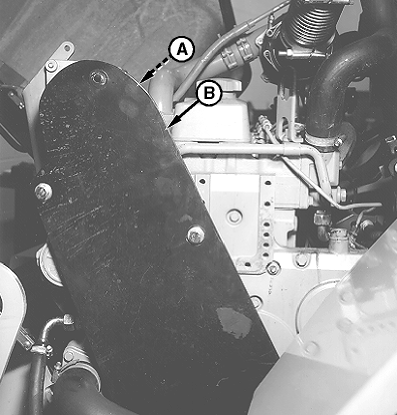

T113298

Without Air Conditioning, Guard Installed

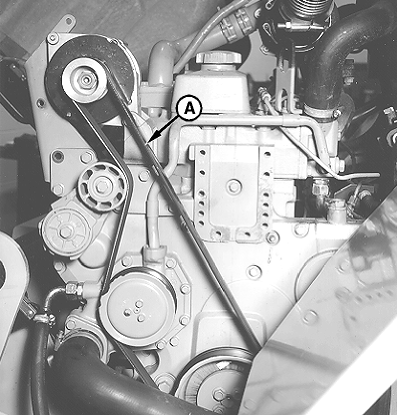

T113299

Without Air Conditioning, Guard Removed

CED,OUO1002,439 -19-29SEP97-2/3

5. Hold tension adjuster (F) assembly away from belt while removing old belt and installing new belt.


A-Alternator Pulley
B-Air Conditioner Compressor Pulley-If Equipped
C-Idler Pulley-If Equipped
D-Crankshaft Pulley
E-Water Pump Pulley
F-Tensioner Pulley

T113131

Pulley Diagram with Air Conditioning

T113132

Pulley Diagram without Air Conditioning

CED,OUO1002,439 -19-29SEP97-3/3
