Drain Fuel Tank Sediment

2. Remove cap (A).

NOTE: Drain hose is stored in toolbox on left side of cab.

As hose is tightened on drain, the valve automatically opens and fuel will begin to drain.

3. Install drain hose (B) on fuel drain.

4. Drain water and sediment into container.

5. Remove drain hose (B).

6. Install cap (A).

7. Dispose of waste properly.

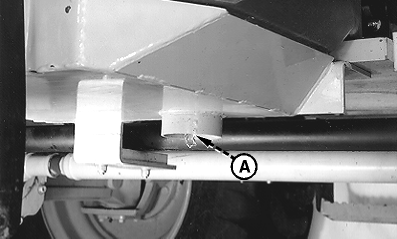

A-Fuel Tank Drain Cap

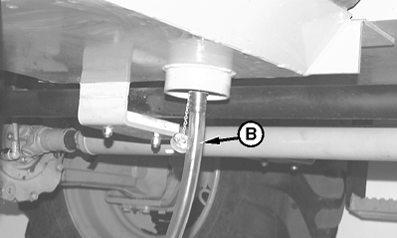

B-Drain Hose

CED,OUO1002,440 -19-20FEB98-1/1
