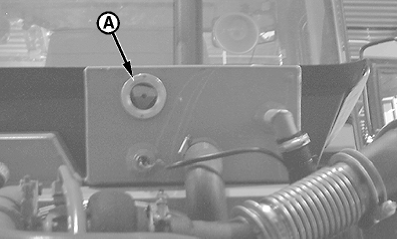

With the engine cold, coolant level must be visible in sight glass (A).
CAUTION:
Prevent possible injury from hot spraying coolant. DO NOT remove radiator filler cap unless engine is cool. Turn cap slowly to the stop. Release all pressure before you remove cap.

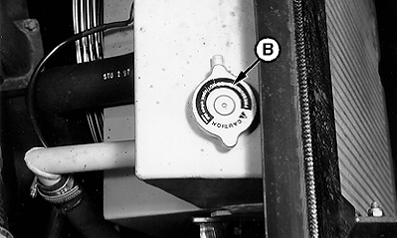

If coolant is not visible, add coolant at radiator filler cap (B).
CAUTION:
Prevent possible injury from hot spraying coolant. DO NOT remove radiator filler cap unless engine is cool. Turn cap slowly to the stop. Release all pressure before you remove cap.
