Check Hydraulic Oil Level

IMPORTANT: Prevent possible hydraulic pump damage. DO NOT operate engine without oil in the hydraulic reservoir.

2. Lower equipment to the ground.

3. On machines (S.N. -710262), open hood.

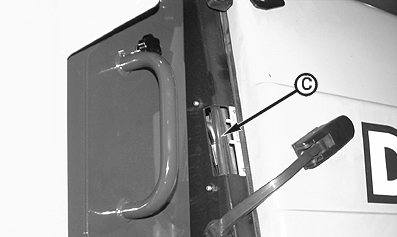

4. When oil is cold, oil level must be above MIN mark on sight glass (C).

CAUTION: Pressurized tank cap removal. Loosen small cap (B) to release air pressure from oil reservoir before removing large cap (A).

5. If necessary, add oil to filler cap (A). (See Fuels and Lubricants chapter.)

6. Install filler cap.

7. Close engine cover.

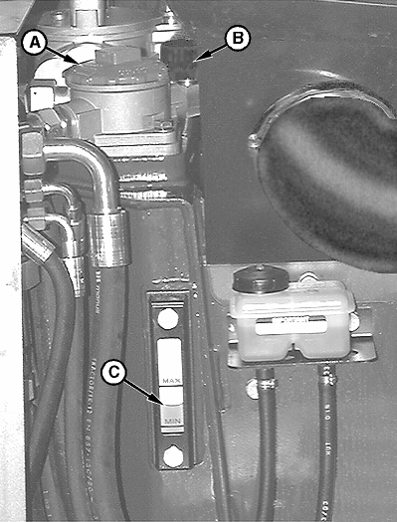

A-Hydraulic Oil Filler Cap
B-Pressure Cap
C-Hydraulic Oil Sight Glass

CED,OUO1002,448 -19-29NOV99-1/1
