Check Brake Oil Level

CAUTION: Prevent hazardous driving conditions. Never operate machine if brake oil is low.

IMPORTANT: Prevent brake damage. Use only SAE10W oil in service brakes.

2. Check oil level in reservoir (B).

3. Oil level must be between minimum and maximum on reservoir.

4. If level is at or below minimum, remove cover (A) and add oil (SAE10W) as necessary.

5. Replace cover.

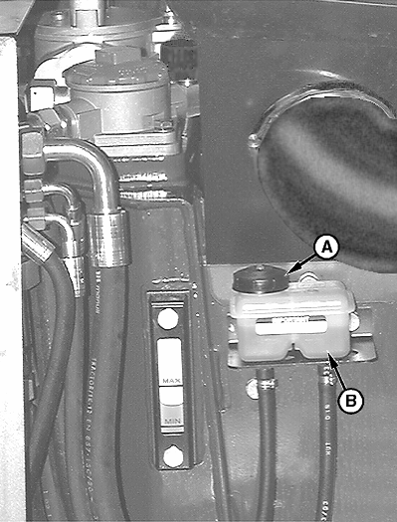

A-Brake Oil Filler Cap
B-Brake Oil Reservoir

CED,OUO1002,449 -19-02NOV99-1/1
