CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar before lubricating.

Lower bucket flat on ground.

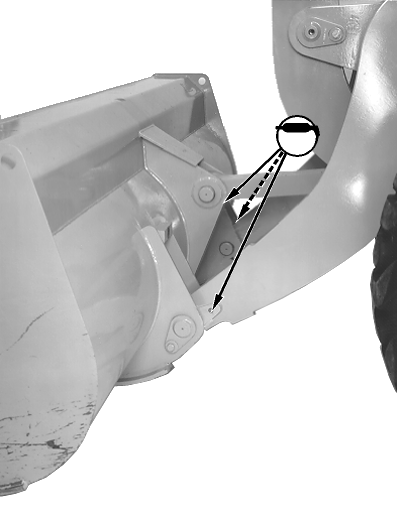

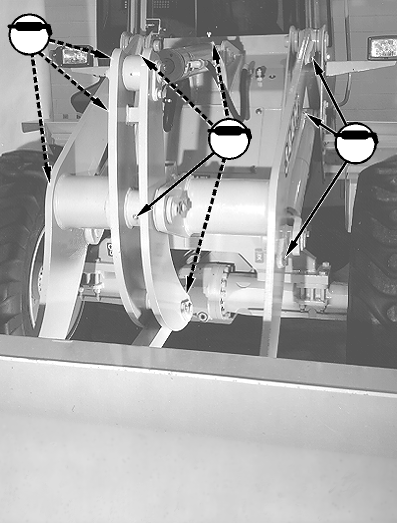

Lubricate 13 points until grease escapes around seals. (See Fuels and Lubricants chapter.)

Lubricate every 10 hours when operating in severe conditions such as deep mud, water, or snow.

CED,OUO1002,451 -19-20FEB98-1/1
