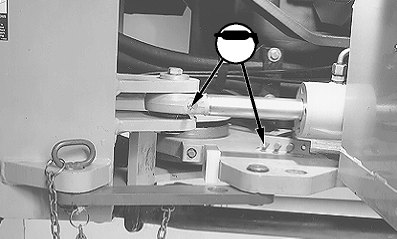

Lubricate Front and Rear Steering Cylinder Pivots

CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar before lubricating.

Lubricate each point with three shots of grease. (See Fuels and Lubricants chapter.)

NOTE: Grease daily when operating in severe conditions such as deep mud, water or snow.

CED,OUO1002,452 -19-20FEB98-1/1
