Lubricate Rear Steering Axle Pivots

CAUTION: Prevent possible injury from unexpected machine movement. Never rely on FNR control lever alone to keep machine from moving. Machine can unexpectedly roll or move under power, resulting in death or serious injury. Always turn engine off or push park brake switch to ON to hold machine.

Apply three shots of grease. (See Fuels and Lubricants chapter.)

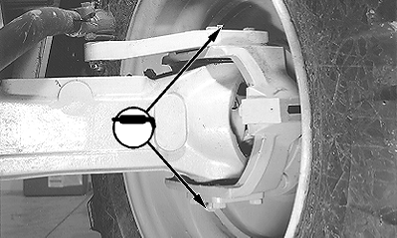

NOTE: The grease points are on opposite sides of each other on the knuckle joint. Their exact location depends on wheel position.

NOTE: Grease daily when operating in severe conditions such as deep mud, water, or snow.

CED,OUO1002,461 -19-10NOV99-1/1
