Clean Engine Crankcase Vent Tube

Remove fitting (A) from rocker arm cover.

Remove vent tube (B) from fitting.

Clean vent tube and fitting.

Install tube on fitting and insert fitting into rocker arm cover.

IMPORTANT: Do not pull on hose. Connector damage may occur.

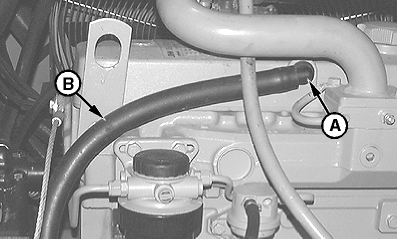

A-Rocker Arm Cover Fitting
B-Crankcase Vent Tube

CED,OUO1002,463 -19-03NOV99-1/1
