Change Rear Differential and Gear Case Oil-344H Loader

NOTE: Park machine on level ground.

NOTE: See Specifications chapter for drain and refill capacities.

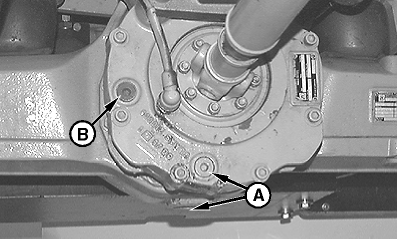

1. Remove drain plugs (A) on rear differential. Allow oil to drain into a container. Dispose of waste oil properly.

2. Install drain plugs.

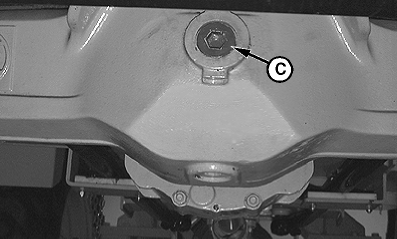

3. Remove fill plug (C). Add oil slowly until oil is to bottom of plug (B).

4. Install plugs (B and C).

A-Drain Plug (2 Used)
B-Plug
C-Fill Plug

CED,OUO1002,465 -19-08NOV99-1/1
