Change Rear Final Drive Oil

NOTE: Park machine on level ground.

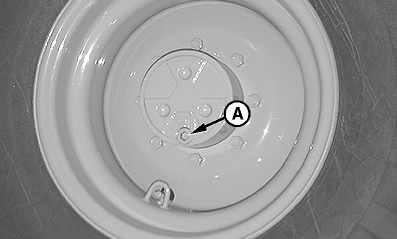

1. Position wheel so that the drain and fill plug (A) is at the bottom.

2. Remove drain and fill plug and allow oil to drain into a container. Dispose of oil properly.


A-Drain and Fill Plug

T113315

344H Shown

CED,OUO1002,466 -19-10NOV99-1/2

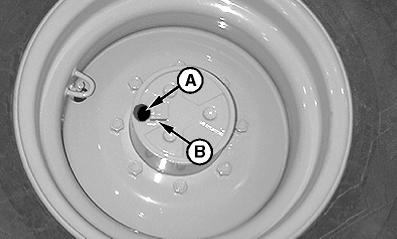

3. Position wheel so that the drain and fill port (A) is at the left (9 o'clock position) and the fill line (B) is horizontal.

4. Fill final drive with oil up to the fill line (B). Install drain and fill plug (A).

5. Repeat for both wheels.


A-Drain and Fill Port
B-Fill Line

T113316

CED,OUO1002,466 -19-10NOV99-2/2
