Check Park Brake and Service Brake Pads

Inspect park brake pads (A) and service brake pads (B) on both sides of disk. Replace pads when they are less than specification.

Specification

Park Brake Pads -Thickness 1.5 mm (0.059 in.) Minimum
Service Brake Pads -Thickness 2.0 mm (0.079 in.) Minimum

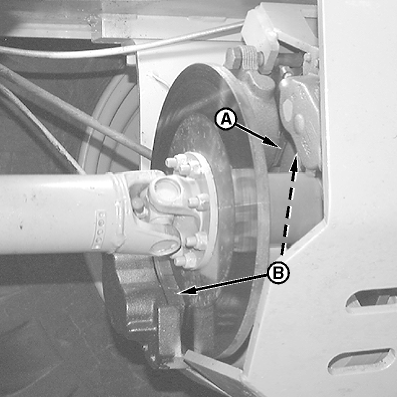

A-Park Brake Pads
B-Service Brake Pads

T113366

344H Shown

CED,OUO1002,468 -19-23FEB98-1/1
