Clean Hydraulic Oil Return Strainer

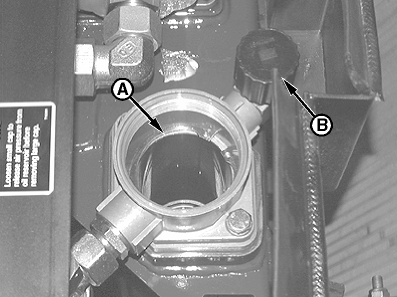

1. Turn hydraulic reservoir breather (B) to relieve system pressure.

2. Remove hydraulic reservoir filler cap.

3. Remove snap ring (A).

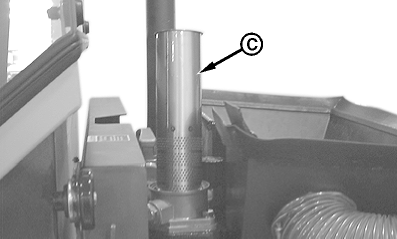

4. Remove strainer (C) and clean with solvent.


A-Snap Ring
B-Hydraulic Reservoir Breather

T113368

CED,OUO1002,471 -19-23FEB98-1/3

5. Install strainer and snap ring.


C-Strainer

T113369

CED,OUO1002,471 -19-23FEB98-2/3

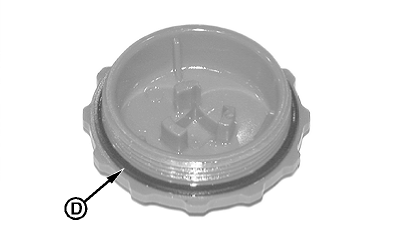

6. Inspect O-ring (D), replace if needed.

7. Install filler cap.

8. Tighten hydraulic reservoir breather.


D-O-Ring

T113370

CED,OUO1002,471 -19-23FEB98-3/3
