Removing Batteries

1. Turn off battery disconnect (A) before disconnecting cables.


A-Battery Disconnect

T113376

CED,OUO1002,476 -19-23FEB98-1/3

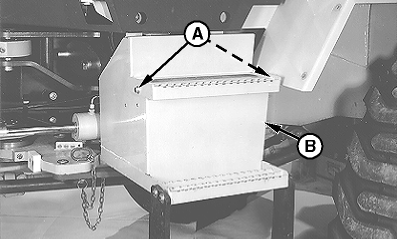

2. Remove cap screws and washers (A).

3. Remove battery box cover (B).


A-Cap Screws and Washers
B-Battery Box Cover

T113309

CED,OUO1002,476 -19-23FEB98-2/3

causym CAUTION: The rear battery terminal is grounded and must be disconnected first, regardless of which battery is being removed.

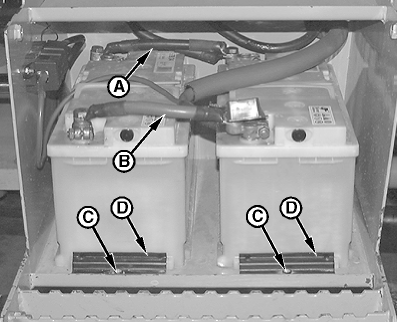

4. Disconnect negative (-) battery cable (A) first, then positive (+) cable (B).

5. Remove cap screws (C) and bracket (D).

6. Lift batteries out of compartment.


A-Negative (-) Cable
B-Positive (+) Cable
C-Cap Screw (2 Used)
D-Bracket (2 Used)
