Replacing Fuses

IMPORTANT: Install fuses with correct amperage rating to prevent electrical system damage from overload.

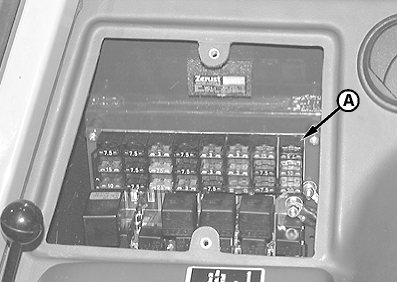

Fuses are located on circuit panel (A) inside the right side console.

IMPORTANT: Install fuse with correct amperage rating to prevent electrical system damage from overload.

NOTE: On machines (S.N. 710244-710261), start relay K2a is mounted on separate relay board.

T113391


A-Circuit Panel

CED,OUO1002,477 -19-09NOV99-1/1
