Replace Marker Light and Drive Light Bulbs

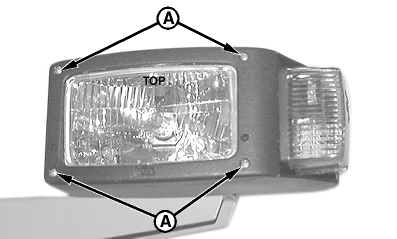

1. Remove four cap screws (A) from front of light assembly.


A-Cap Screws (4 used)

T113732

CED,OUO1002,480 -19-23FEB98-1/5

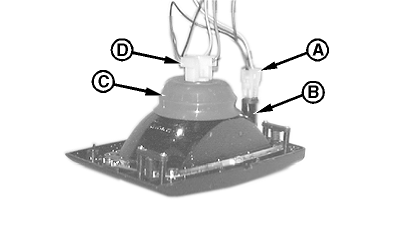

2. Disconnect marker light connector (A) and drive light connector (D).

3. Carefully, pull out socket (B) to remove marker light bulb. Replace bulb as necessary.

IMPORTANT: Drive light bulb is halogen. Do not touch the halogen bulb with bare hands. Oil and moisture may cause premature bulb failure. Clean bulb using a soft, oil-free cloth and alcohol.

4. Turn retaining ring (C) counterclockwise to remove drive light bulb.

T113733


A-Marker Light Connector
B-Marker Light Bulb Socket
C-Retaining Ring
D-Drive Light Connector

CED,OUO1002,480 -19-23FEB98-2/5

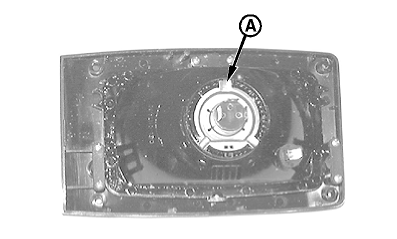

5. Install new drive light bulb with large tab (A) at top.


A-Large Tab

T113734

CED,OUO1002,480 -19-23FEB98-3/5

6. Install retaining clip (C), turning it clockwise to lock in place.

7. Connect electrical connectors (A and D).


A-Marker Light Connector
B-Marker Light Bulb Socket
C-Retaining Ring
D-Drive Light Connector

T113733

CED,OUO1002,480 -19-23FEB98-4/5

IMPORTANT: Install lens and bulb assembly with the word "TOP" at the top of the assembly.

8. Install lamp and lens assembly into housing and secure with four cap screws (A).


A-Cap Screws (4 used)

T113732

CED,OUO1002,480 -19-23FEB98-5/5
