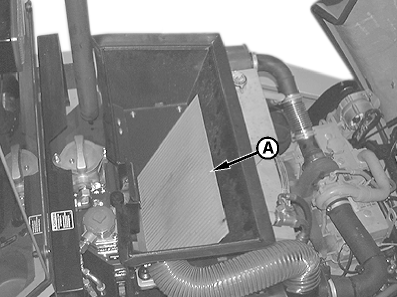

Check and Clean Hydraulic Oil Cooler and Radiator1. Open engine cover. Check hydraulic oil cooler and radiator (A) for dust and debris.2. If dust or debris is light, clean coolers by blowing air through the fins. Do not exceed 6 bar (90 psi). Blow air straight through fins to avoid bending them. 3. If air fails to clean the coolers, use a high-pressure washer with soap and water not to exceed 20 bar (290 psi). Direct water straight through fins to avoid bending them. |
|
CED,OUO1002,481 -19-02NOV99-1/1 |
