OMT183945: 324H and 344H Loader, Block File: CED_OUO1002_486_19

causym CAUTION: Prevent possible injury from hood closing. Always keep hood propped open when servicing the engine area.

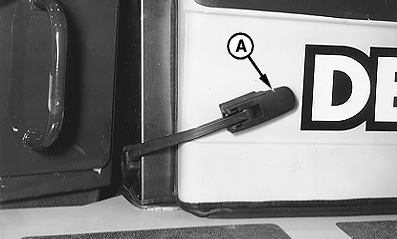

1. Pull out on latch (A) on both sides of hood. Latch will disengage from hood.

A-Hood Latch

344H (S.N. -710261) Shown

CED,OUO1002,486 -19-14OCT99-1/3

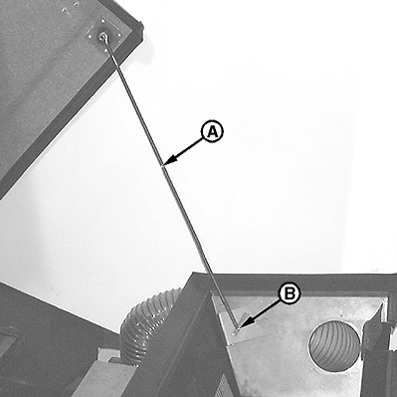

2. Lift hood and place end of prop (A) into catch (B).

A-Hood Prop
B-Hood Prop Catch

CED,OUO1002,486 -19-14OCT99-2/3

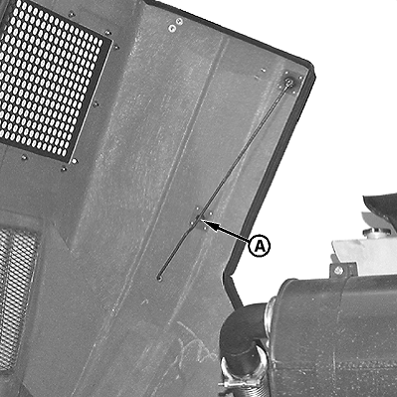

3. Store engine cover prop using clip (A). Lower hood and connect latches.

A-Hood Prop Clip

CED,OUO1002,486 -19-14OCT99-3/3
